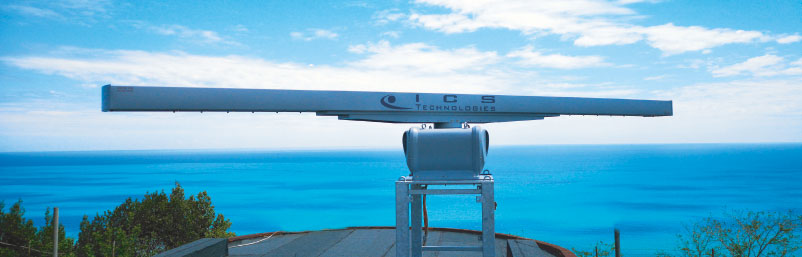

XRAD OCEANGARD

The XRAD-OCEANGARD represents the last generation of X-Band solid-state radars, designed by ICS Technologies, for VTMS and Coastal Surveillance applications and available in different configurations according to mission requirements.

Description

The X-Band fully coherent solid-state radar family XRAD-OCEANGARD is available in different configurations according to mission requirements.

VTS APPLICATIONS

There are three entry versions, each of them exceed the level of performance Basic, Standard and Advanced set by IALA Guideline no.1111 and IALA V.128 recommendation.

COASTAL SURVEILLANCE

The fully coherent solid-state radar XRAD-OCEANGARD meets a new class of requirements by exploiting the benefits of digital waveform synthesis and processing, thus improving the coastal surveillance and unveiling any threat and illegal activities.
To pay demanding requirements, XRAD-OCEANGARD enables new capabilities by giving the possibility to upgrade its hardware and including new elaboration modules. Possible upgrades concern: transmitted power, computation capacity, additional software modules, customization of waveforms, specific radar antenna systems (fan beam, inverse cosecant squared,…).
For example, XRAD-OCEANGARD makes possible to discriminate small boats which covert behind big vessels independently from distance of the coastline.
In addition, the system can distinguish low flying objects (fixed wings or helicopters) through Doppler filtering.

Key Features

    • X-band, solid-state, fully-coherent
    • Up-mast, mast-mounted or down-mast
    • Single or Redundant transceiver
    • Frequency diversity / Time diversity
    • Doppler processing
    • No waveguide path (zero attenuation)
    • Ease of installation (plug & play)
    • No consumables
    • Reduced maintenance routine

Configurations

TRANSCEIVER
  • Up-mast (within the antenna turning unit)
  • Mast-mounted (outdoor cabinet)
  • Down-mast (indoor cabinet)
  • 100W, 200W, 300W, 400W solid state power amplifier
ANTENNAS
  • 12 ft, 18 ft, 21 ft, horizontal or circular
  • Switchable H/C polarization
  • Quasi Inverse Cosecant Squared
  • Quasi Cosecant Squared
  • With or without mechanical tilt

Options

TRANSCEIVER
  • Redundancy
ANTENNAS
  • De-icer kit for extended operating temperature (-50 ° C ÷ +55 ° C)
  • Redundant encoder head
  • ACP: 4096 (standard), 8192 or 16384
ELABORATION
  • Enhanced range discrimination
  • Tracker

Description

The XRAD-OCEANGARD is designed to exceed performance recommended by IALA Guideline No.1111 and IALA Recommendation V.128 and therefore able to detect even the smallest targets within the surrounding scenario.

The XRAD-OCEANGARD radar family is based on a fully coherent pulse compression solid-state transceiver and a radar antenna. The transceiver benefits of advanced Digital Frequency Synthesis Algorithms and employs Solid State Power Amplification in order to ensure H.24 operation with best availability.

The receiver applies Signal Processing and Digital Techniques (FFT analysis, …) for providing a clear crystal radar picture in every weather condition.To pay demanding requirements, XRAD-OCEANGARD enables new capabilities by giving the possibility to upgrade its hardware and including new elaboration modules. Possible upgrades concern: transmitted power, computation capacity, additional software modules, customization of waveforms, specific radar antenna systems (fan beam, inverse cosecant squared,…).

Key strengths

The XRAD-OCEANGARD is a high-end solid state radar with:

  • Best performance (Zero attenuation concept, Time and frequency diversity, …);
  • High-end radar array antennas;
  • Simplified installation activities and reduced footprint (Plug&Play concept);
  • Full auto-diagnosis;
  • Unbeatable reliability and reduced maintenance (no transmission belt, magnetic encoder, no consumables, …);
  • Designed as lower replaceable unit in order to make repair easy and quick
FEATURES DESCRIPTION
ZERO ATTENUATION CONCEPT XRAD-OCEANGARD radar embeds a solid state transceiver in the scanner unit, and directly coupled to the antenna. This is the meaning of ICS Technologies “Zero attenuation concept”, which provides the following technical and economic advantages:

  • Zero attenuation between transceiver and antenna unit (no waveguide path) and best radar echoes.
  • Zero maintenance on running waveguides and reduced installation costs.
  • Improved visibility in the short range (reduced main bang at minimum).
 PLUG & PLAY CONCEPT

System is provided with mil-std connectors and any connection cable is pre-assembled and tested at factory. Best quality material is used, and system is designed for a lifetime of over 20 years.

  • No more waveguides to install between antenna and transceivers
  • No cables to assembly at site
  • No more errors or necessity of special tools during installation
  • XRAD-OCEANGARD installation is simply, time saving and convenient
 EASY MAINTENANCE CONCEPT
  • The radar motor is geared with direct drive transmission. Transmission belt, which must be maintained periodically has been removed. Easy: no belt, no maintenance!
  • The radar motor is installed inside the rotation unit, not exposed to atmospheric environment, thus increasing its reliability drastically.
  • The motor gearbox is equipped with a hydraulic hose in order to make the maintenance operations (purge and refill the oil) easier.
  • The system is equipped with hollow-shaft magnetic encoder, available with single or dual encoder head. This type of encoder has the highest reliability since does not have any wearing between moving parts and does not require any maintenance other than providing a superior precision due to the absence of backlash (that is typical of encoder with chain).
  • System is designed for high availability (>99.95%).
 etc…

Configurations

RECOMMENDED CONFIGURATIONS
No IALA compliance

Exceeding

IALA BASIC

Exceeding

IALA STANDARD

 Exceeding

IALA ADVANCED
 TURNING UNIT
 TRANSCEIVER 100W or 200W 100W or 200W 200W or 300W or 400W
ANTENNA SIZE 6ft 12ft 18ft 21ft
ANTENNA POLARIZATIONS AVAILABLE
  • HORIZONTAL
  • HORIZONTAL
  • CIRCULAR
  • HORIZONTAL
  • CIRCULAR
  • VERTICAL
  • HORIZONTAL
  • CIRCULAR
 INSTALLATION
  • SINGLE UP-MAST EMBEDDED
  • DUAL MAST-MOUNTED
  • DUAL DOWN-MAST
  • SINGLE UP-MAST EMBEDDED
  • DUAL MAST-MOUNTED
  • DUAL DOWN-MAST

Options

  • EXTRACTOR-TRACKER UNIT (SINGLE OR REDUNDANT)
  • DUAL SWITCHABLE ANTENNA POLARIZATION
  • QUASI INVERSE COSECANT SQUARED ANTENNA
  • QUASI COSECANT SQUARED ANTENNA
  • DE-ICER KIT FOR EXTENDED OPERATING TEMPERATURE (-50 ° C ÷ +55 ° C)
  • REDUNDANT ENCODER HEAD
  • ACP: 4096 (standard), 8192 or 16384

For additional information on XRAD-OCEANGARD, please contact ICS Technologies at sales@xtechnologies.it
