X-INS represents ICS’S response to military and paramilitary Integrated Navigation Systems demand. Compliant to IMO resolution, the modular and scalable flexibility makes X-INS suitable for installations onboard High-Speed Craft, OPV, or Navy ships. The open architecture makes X-INS suitable for fitting new ship buildings or to satisfy retrofitting programs; in fact, being X-INS in-house designed and manufactured assures versatility and easiness to integrate new and old third-party navigation sensors to modern ICS’s ARPA- WECDIS and CONNING software. The system is designed respecting a real full redundancy concept, avoiding any single point of failure. WECDIS is STANAG 4564 requirements compliant. X-INS is also featuring live video display coming from ESPY EO system or third-party EO’s video, if available and compatible. X-INS is a DDS-ready system for Navy applications.

APPLICATION FIELDS

radar.48
radar.48
radar.48

CONFIGURATION

  • X-INS is a scalable product. The basic configuration foresees:
    • Multi-Functional-Consoles (MFCs) to be installed on the bridge, each of them running simultaneously ARPA-WECDIS and CONNING, satisfying the full redundancy concept
    • X-DDU, fully redundant ICS’s Data Distribution Unit
    • One or more radar sensors of the HEDGE’s family
    • W-AIS

    If not already available, ICS’s can also configure X-INS with third-party COTS navigation aids like Gyro, GPS, LOG, Echosounder, and so on.

    Multi-Functional-Consoles are available in both standing or flush-mounted configurations. Each of the consoles comprises, other than the software applications, marine-grade certified monitors, fanless PC, keyboard, and trackball.

CAPABILITIES OVERVIEW

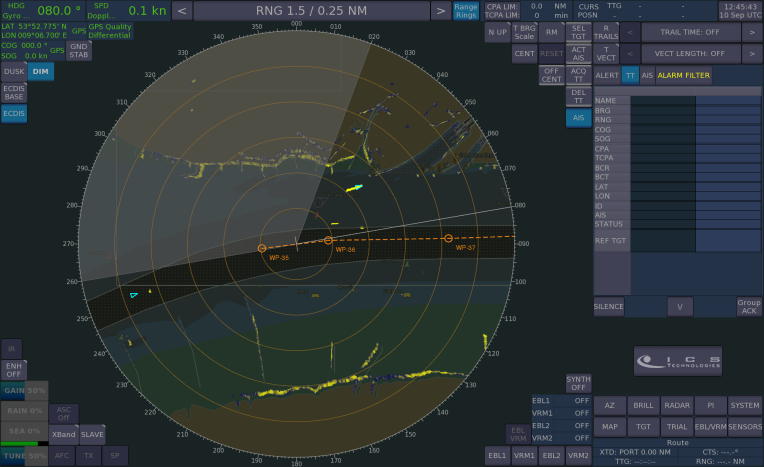

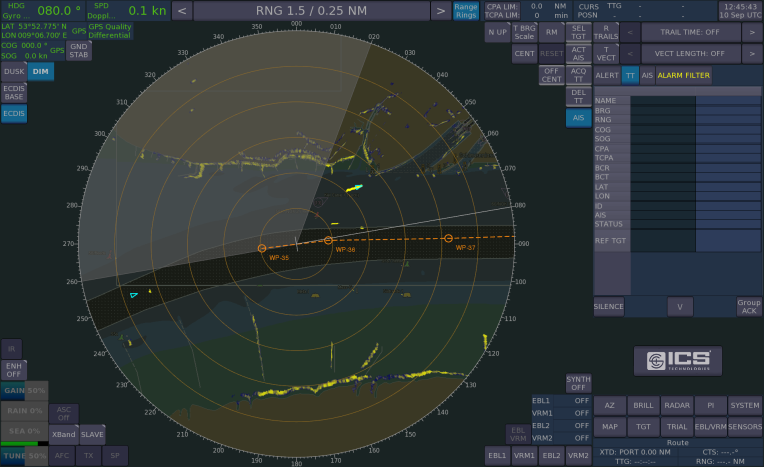

X-INS ARPA’s display provides all functions foreseen by IMO regulations; optionally deliverable in combination with ICS’s X-STARS Tactical Software.

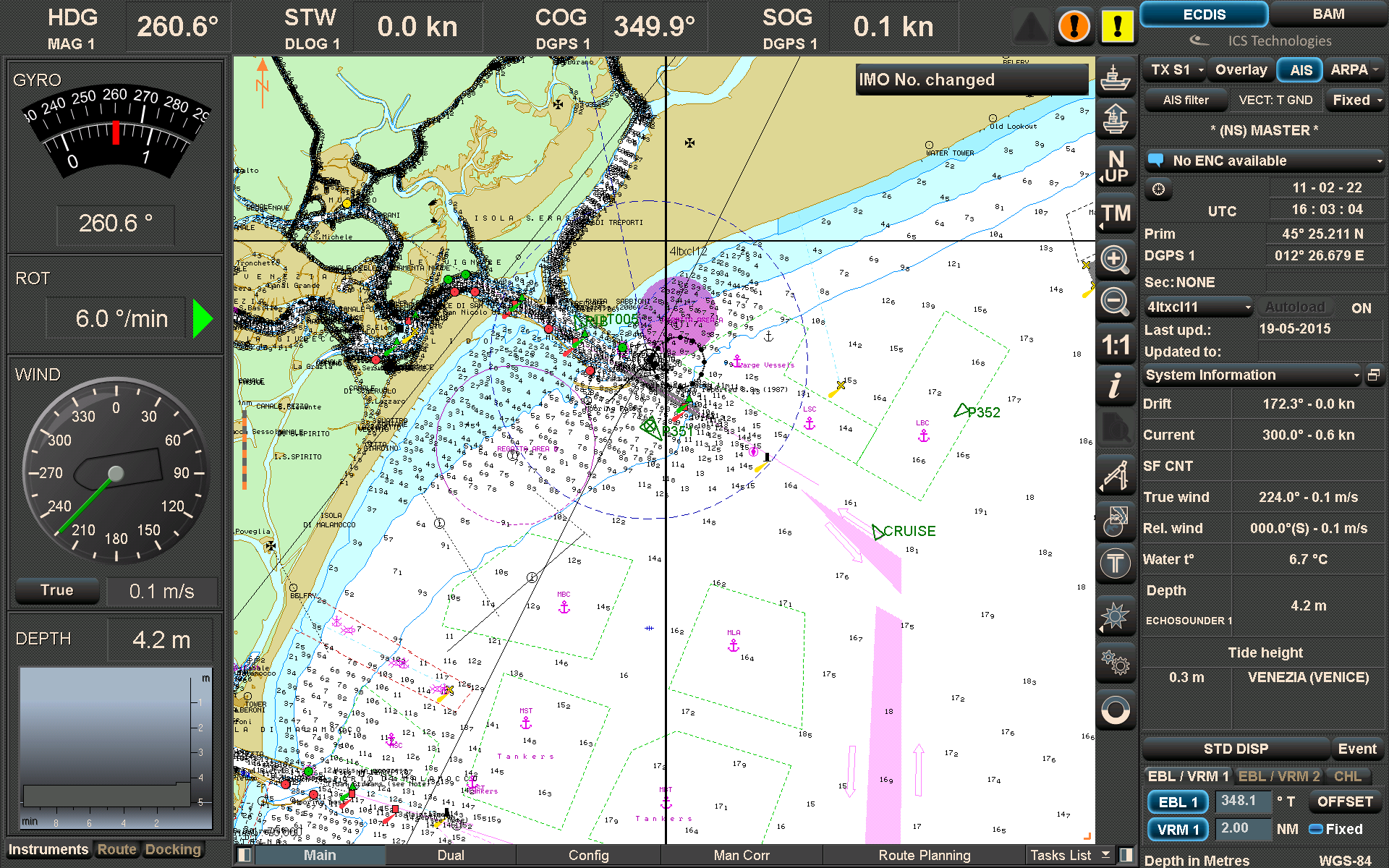

X-INS ECDIS features enhanced navigation capabilities as well as first-sight clear tactical picture, helping the operators to constantly have a fully understandable tactical scenario awareness.

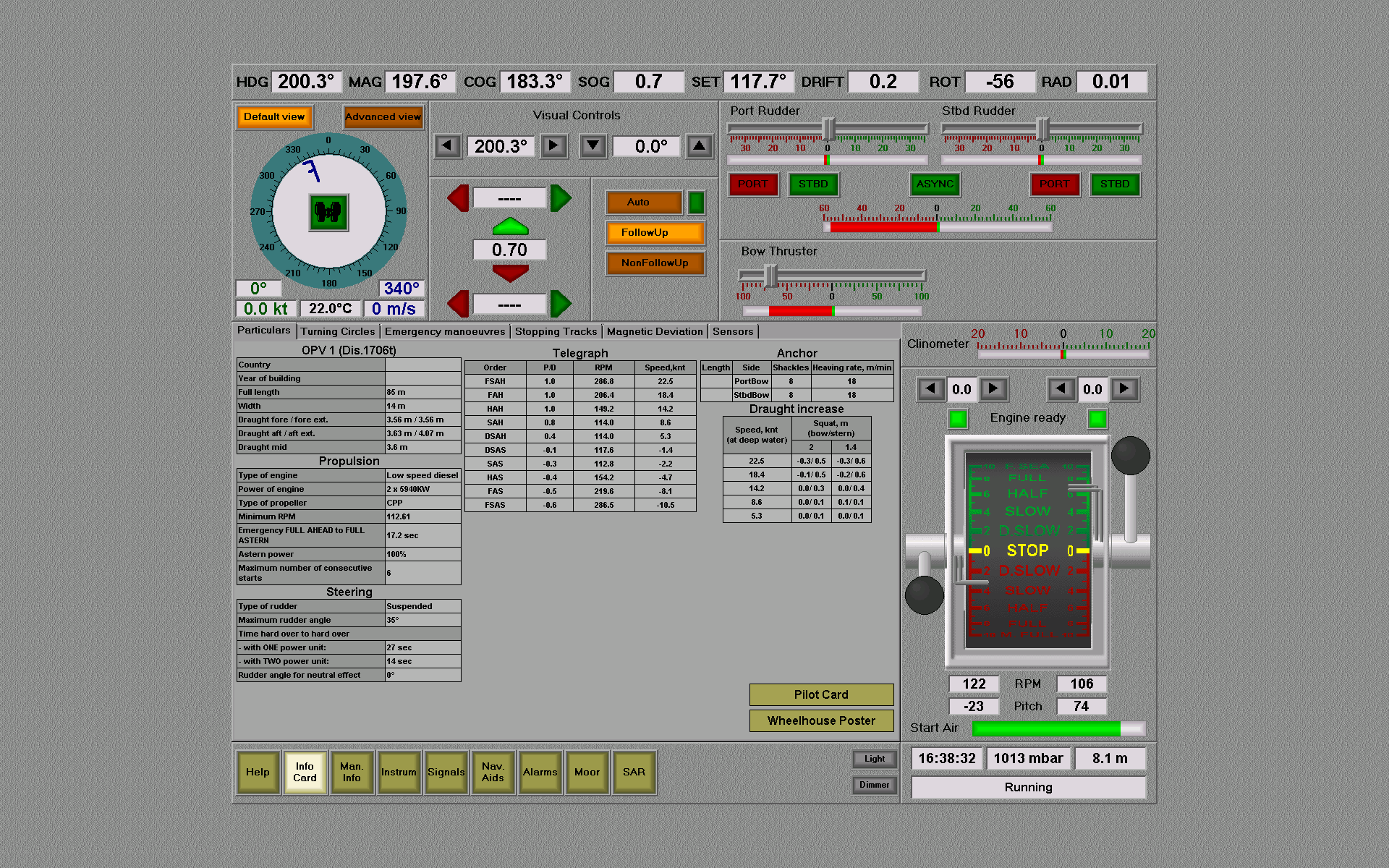

A first-sight clear picture also characterizes X-INS CONNING display which provides information constantly refreshed information from engines, rudder, depth, ship sensors (hatches status, water fuel levels, etc.), and so on.

APPLICATIONS

military navigation

Military and paramilitary navigation
