X-COM, it is designed for all those applications where after identification a voice communication to broadcast warnings or commands is required. X-COM gimbal design makes it suitable for naval or vehicle applications. X-COM can broadcast both live messages via the system’s microphone or pre-recorded messages stored in the system’s library; the broadcasting of pre-recorded messages allows the operator to broadcast messages in different languages just by choosing the needed one from the library.  X-COM family offers different configurations, and can be also integrated into any third-party C2, C4, or CMS system.  With 18 inches size, the reduced footprint and lightweight make ESPY suitable for installations onboard any size vessel or vehicle. Extremely easy to install and set up, also X-COM family features the distinguishing ICS’s mark Plug&Play concept. The special and exclusive detachable head design allows an extremely reduced downtime since the whole head comprising all of the sensors can be entirely replaced within seconds without requiring any further alignment or installation procedures required.

APPLICATION FIELDS

radar.48
radar.48
radar.48

KEY STRENGHTS

  • IP66 Waterproof 156dB(A) L-L peak acoustic emitter
  • Live voice or pre-recorded message broadcasting
  • Microradians gyroscope stabilization
  • Embedded video tracking features
  • Augmented reality with visual AIS data integration
  • MTI video detection
  • Dual live video with Picture in Picture or Split Screen features
  • Multispectral image blending
  • Third axis video stabilization
  • Any external sensors Slew to Cue integration
  • Ease and quick to install with ICS’s Plug&Play concept, zeroing any possible installation mistake
  • Unbeatable maintenance downtime thanks to the exclusive detachable head design
  • Full self-diagnosis (BITE)

LOCAL CONSOLE & CONTROL SOFTWARE

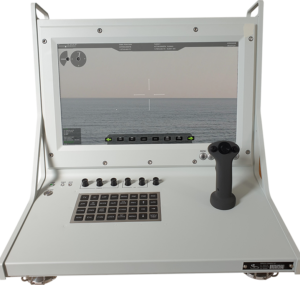

X-COM is supplied with its own console, available in tabletop or flush-mounted versions. The control software allows, among the rest, the message broadcasting, the visualization of the videos and data coming from the head’s sensors, the manual control of the head’s movements thanks to the high precision MIL-STD joystick, the creation of surveillance patterns, the control of the head’s embedded video tracker, and displays the continuous BITE. The integration with third-party software (C2, C4, Tactical, and so on) is performed via ICS’s proprietary protocols.

definitva
Console-1_web-306x285

CONFIGURATIONS

CONFIGURATIONS

X-COM’s optical payload can be configured in different ways according. The basic configuration foresees an HD daylight camera, a cooled (MWIR) or uncooled (LWIR) IR camera and a hi-intensity visible spotlight. Both HD daylight camera and IR camera are available with different focal lengths, hence with different optical zoom capabilities. Optionally, ESPY can be also equipped with a laser range finder.

X-COM’s optical payload can be configured in different ways according. The basic configuration foresees an HD daylight camera, a cooled (MWIR) or uncooled (LWIR) IR camera and a hi-intensity visible spotlight. Both HD daylight camera and IR camera are available with different focal lengths, hence with different optical zoom capabilities. Optionally, ESPY can be also equipped with a laser range finder.

X-COM/SP X-COM/EP X-COM/AP X-COM/DZ1 X-COM/DZ5
ACOUSTIC EMITTER, 150dB L-L peak @ 1m
DAY&NIGHT COLOR TV CAMERA, ZOOM ≥ 24x
UNCOOLED LWIR HD640 75mm
UNCOOLED LWIR HD640 125mm, ZOOM ≥ 5x
COOLED MWIR HD640 300mm, ZOOM ≥ 20x
HIGH POWER LASER DAZZLER (with safety) 1W 5W
PROXIMITY LASER RANGE FINDER (NOHD 0m)
LASER POINTER
AHRS

APPLICATIONS

SAR

SAR and Maritime Police Operations

offshore

Offshore platforms

critical infrastructure

Critical Infrastructure Protection

airport

Airport Bird Strike control and Avoidance

OPTIONS

  • Embedded Video Tracker
  • Laser Range Finder
  • Augmented Reality with AIS integration
