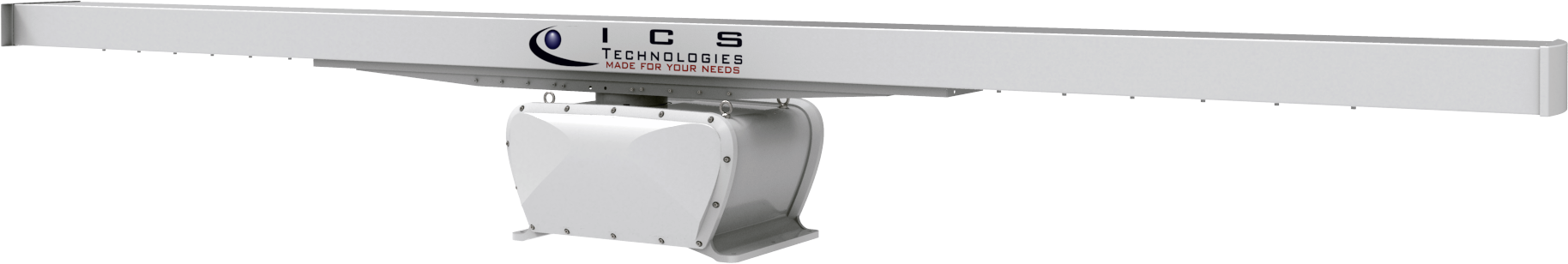

RADAR ANTENNA SYSTEMS

ICS Technologies focuses on manufacturing radar antenna systems for Coastal surveillance and Surface Movement Ground Control applications.

ICS Technologies Radar Antenna System withstands to operative wind speed up to 100 knots and can be installed at any latitude.  In case of extreme rigid climate, optional de-icer kit assures continuous operation down to minus 50°C.



ICS Technologies provides best and durable performance for at least 15 years from commissioning, with very low maintenance routine.

RANGE OF FREQUENCY (9200 ÷ 9500 MHz)
Product XASH-1800 XASC-1800 XASH-2100 XASC-2100
Configuration 18′ Horizontal 18′ Circular 21′ Horizontal 21′ Circular
Perfomance G: 36 ± 0.5dBi

H: 0.42° ± 0.02°

G: 35.5 ± 1dBi

H: 0.42° ± 0.02°

G: 38 ± 0.5dBi

H: 0.37° ± 0.02°

G: 37.5 ± 1dBi

H: 0.37° ± 0.02°

RANGE OF FREQUENCY (8800 ÷ 9000 MHz)
Product XASH-1800/G XASC-1800/G XASH-2100/G XASC-2100/G
Configuration 18′ Horizontal 18′ Circular 21′ Horizontal 21′ Circular
Perfomance

G: 34.5 ± 0.5dBi

H: ≤ 0.45°

G: 34.5 ± 1dBi

H: ≤ 0.45°

G: 37 ± 0.5dBi

H: ≤ 0.4°

G: 37 ± 1dBi

H: ≤ 0.4°

  • X-Band
  • High gain, high discrimination, better side lobe suppression
  • Coastal surveillance (Exceeding IALA V.128)
  • Surface Movement Ground Control
  • Vertical Pattern: quasi-Inverse Cosecant Squared
  • Vertical Pattern: quasi-Cosecant Squared
  • Mechanical Tilt
  • Antenna Supply Unit
  • Safety Switch
  • Kit of waveguide and cables
  • De-Icer kit for extended operating temperature (-50°C ÷ + 55°C)
  • Redundant encoder head
  • ACP: 4096 (standard). 8192 or 16384

ICS Technologies Radar Antenna System withstands to operative wind speed up to 100 knots and can be installed at any latitude.  In case of extreme rigid climate, optional de-icer kit assures continuous operation down to minus 50°C.



ICS Technologies provides best and durable performance for at least 15 years from commissioning, with very low maintenance routine.

  • X-Band
  • High gain, high discrimination, better side lobe suppression
  • Coastal surveillance (Exceeding IALA V.128)
  • Surface Movement Ground Control
  • Vertical Pattern: quasi-Inverse Cosecant Squared
  • Vertical Pattern: quasi-Cosecant Squared
  • Mechanical Tilt
  • Antenna Supply Unit
  • Safety Switch
  • Kit of waveguide and cables
  • De-Icer kit for extended operating temperature (-50°C ÷ + 55°C)
  • Redundant encoder head
  • ACP: 4096 (standard). 8192 or 16384

For additional information on Radar Antenna Systems, please contact ICS Technologies at sales@xtechnologies.it
